162 KW Dozer Construction Equipment SD22 With 30 Degree Gradeability

Name: 162 KW Dozer Construction Equipment SD22 With 30 Degree Gradeability
Brand: Visbull
Price: 1 USD

Quality 162 KW Dozer Construction Equipment SD22 With 30 Degree Gradeability wholesale

Brand Name : Visbull

Model Number : SD22

Certification : Ghost/ISO

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : L/C at sight, T/T or western Union

Supply Ability : 500 units per month

Delivery Time : 30 working days after received L/C or your deposit

Packaging Details : Naked packing

Product Name : Crawler bulldozer

Ground clearance : 540mm

Engine flywheel power : 222 HP

Number of track shoes : 38

Operating weight(not including ripper) : 23400KGS

Max.digging depth : 440 mm

Ground pressure : 77 Kpa

Lift height of blade : 1210 mm

Contact Now

Feature:

Transmission: planetary gear,multiple-disc clutch, hydraulically connected forced lubrication by gear pump.

Main drive: spiral bevel gear,splash lubrication.

Steering clutch: wet type,multiple-disc,spring loaded,hydraulically separated, hand and hydraulic control operated.

Steering brake: wet type,band brake,foot operated (with hydraulic booster,interconnected with clutch).

Final drive: 2-stage spur gear,speed reduction,splash lubrication.

Specification:

ITEM	UNIT	SD22
L×W×H (Ripper not included)	mm	5750×3725×3395
Operating weight (Ripper not included)	t	23.4
Engine	-
Rated power	kW/rpm	162/1800
Gradeability	°	30
Blade type	-	Straight tilt blade U-blade Semi-U blade Angle blade
Blade width	mm	Straight tilt blade 3725×1315 U blade 3800×1343 Semi-U blade 3725×1374 Angle blade 4365×1055
Dozing capacity	m3	Straight tilt blade 6.4 U blade 7.5 Semi-U blade 7.0 Angle blade 4.7
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1210
Ripper type		Single ripper Three-shank ripper
Ripping depth of ripper	mm	Single ripper 695 Three-shank ripper 666
Lifting height of ripper	mm	Single ripper515 Three-shank ripper 555
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	38
Width of track shoe	mm	560
Track gauge	mm	2000
Ground length and ground pressure	mm/MPa	2730-0.077
Pitch	mm	216
Forward speed	km/h	0–3.6
		0–6.5
		0–11.2
Reverse speed	km/h	0–4.3
		0–7.7
		0–13.2

162 KW Dozer Construction Equipment SD22 With 30 Degree Gradeability

Product Tags:

heavy equipment bulldozer

dozer construction equipment

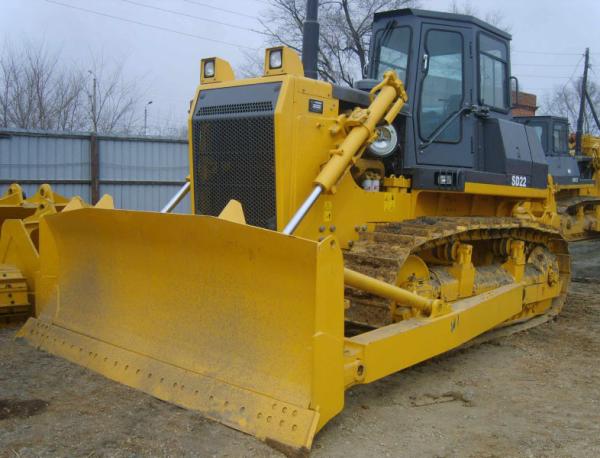

162 KW Dozer Construction Equipment SD22 With 30 Degree Gradeability Images
